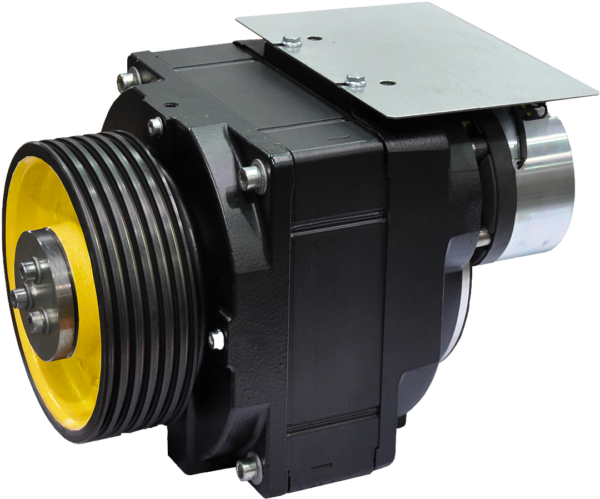

Thyssenkrupp Gearless – PMC145S
Thyssenkrupp Gearless – PMC145S
The PMC145 is a frequency-controlled (VVVF) synchronous machine excited by permanent magnets and belongs to the product group of the thyssenkrupp Mini gearless.
| Feature | Details | Unit |
|---|---|---|
| Suspension | 1:1 or 2:1 | – |
| Rated Load | from 270 to 450 | Kilograms |
| Rated Torque | from 190 to 170 | Newton meter |
| Maximum Static Load | 1425 | Kilograms |
| Rated Current | from 7.8 to 7 | Ampere |
| Rated Speed | up to 1 | meter/second |
| Diameter of Traction Sheave | 240 | Millimeter |
| Diameter of Ropes | 6 | Millimeter |
| Number of Grooves | 7 | – |
| Type of Grooves | Seat groove | – |
| Weight | 154 | Kilograms |
| Number of Starts/Hour | 120 | Start/Hour |
| Operating Voltage | 380 | Volt |
| Protection Class | IP21 | – |
| Version of Brake | 2-surface disc brake | – |
| Brake Monitoring | Release monitoring (microswitch) per brake circuit | – |
Suspension 1:1 data
|
Suspension |
1:1 |
|
Rated Load |
275 kg |
|
Rated Speed |
1 m/s |
|
Diameter of Traction Sheave |
240 mm |
|
Diameter of Ropes |
6 mm |
|
Number of Grooves |
7 |
|
Type of Grooves |
Seat groove |
|
Rated Power |
1.6 kW |
|
Rated Torque |
190 N.m |
|
Maximum Static Load |
1425 kg |
|
Weight |
154 kg |
|
Number of Starts/Hour |
120 |
|
Rated Current |
7.8 A |
|
Operating Voltage |
380 V |
|
Protection Class |
IP 21 |
|
Version of Brake |
2-surface disc brake |
|
Brake Monitoring |
Release monitoring (microswitch) per brake circuit |
Suspension 2:1 data
|
Suspension |
2:1 |
|
Rated Load |
450 kg |
|
Rated Speed |
1 m/s |
|
Diameter of Traction Sheave |
240 mm |
|
Diameter of Ropes |
6 mm |
|
Number of Grooves |
7 |
|
Type of Grooves |
Seat groove |
|
Rated Power |
2.8 kW |
|
Rated Torque |
170 N.m |
|
Maximum Static Load |
1425 kg |
|
Weight |
154 kg |
|
Number of Starts/Hour |
120 |
|
Rated Current |
7 A |
|
Operating Voltage |
380 V |
|
Protection Class |
IP 21 |
|
Version of Brake |
2-surface disc brake |
|
Brake Monitoring |
Release monitoring (microswitch) per brake circuit |
General Features
| Feature | Details | Unit |
|---|---|---|
| Suspension | 1:1 or 2:1 | - |
| Rated Load | from 270 to 450 | Kilograms |
| Rated Torque | from 190 to 170 | Newton meter |
| Maximum Static Load | 1425 | Kilograms |
| Rated Current | from 7.8 to 7 | Ampere |
| Rated Speed | up to 1 | meter/second |
| Diameter of Traction Sheave | 240 | Millimeter |
| Diameter of Ropes | 6 | Millimeter |
| Number of Grooves | 7 | - |
| Type of Grooves | Seat groove | - |
| Weight | 154 | Kilograms |
| Number of Starts/Hour | 120 | Start/Hour |
| Operating Voltage | 380 | Volt |
| Protection Class | IP21 | - |
| Version of Brake | 2-surface disc brake | - |
| Brake Monitoring | Release monitoring (microswitch) per brake circuit | - |
Technical Features
Suspension 1:1 data
|
Suspension |
1:1 |
|
Rated Load |
275 kg |
|
Rated Speed |
1 m/s |
|
Diameter of Traction Sheave |
240 mm |
|
Diameter of Ropes |
6 mm |
|
Number of Grooves |
7 |
|
Type of Grooves |
Seat groove |
|
Rated Power |
1.6 kW |
|
Rated Torque |
190 N.m |
|
Maximum Static Load |
1425 kg |
|
Weight |
154 kg |
|
Number of Starts/Hour |
120 |
|
Rated Current |
7.8 A |
|
Operating Voltage |
380 V |
|
Protection Class |
IP 21 |
|
Version of Brake |
2-surface disc brake |
|
Brake Monitoring |
Release monitoring (microswitch) per brake circuit |
Suspension 2:1 data
|
Suspension |
2:1 |
|
Rated Load |
450 kg |
|
Rated Speed |
1 m/s |
|
Diameter of Traction Sheave |
240 mm |
|
Diameter of Ropes |
6 mm |
|
Number of Grooves |
7 |
|
Type of Grooves |
Seat groove |
|
Rated Power |
2.8 kW |
|
Rated Torque |
170 N.m |
|
Maximum Static Load |
1425 kg |
|
Weight |
154 kg |
|
Number of Starts/Hour |
120 |
|
Rated Current |
7 A |
|
Operating Voltage |
380 V |
|
Protection Class |
IP 21 |
|
Version of Brake |
2-surface disc brake |
|
Brake Monitoring |
Release monitoring (microswitch) per brake circuit |
