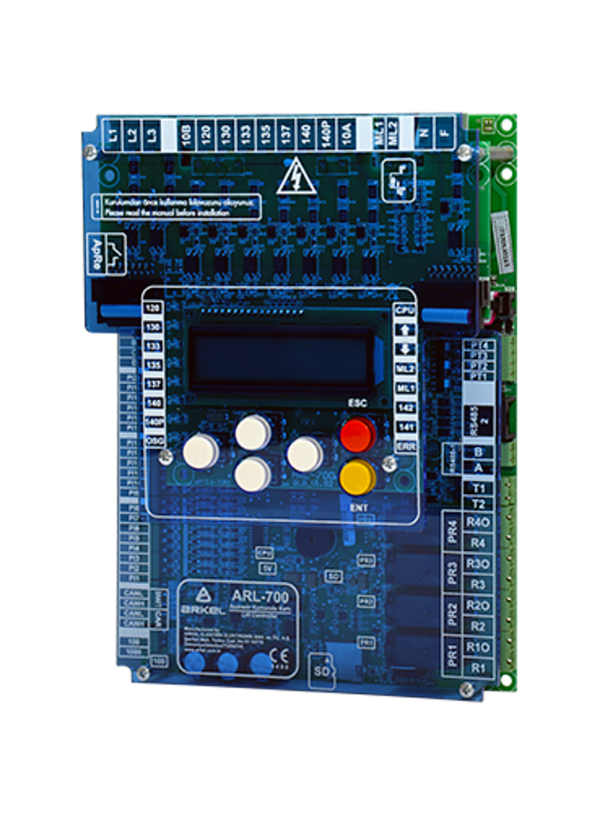

Arkel – ARL700
Arkel – ARL700
Controller card for elevators with ropes and hydraulic elevators that are suitable with En81-20.
| Feature | Details | Unit |
|---|---|---|
| Rated Speed | 2.5 | m/s |
| Number of Stops | 64 | Stops |
| Control Type | Single Button Pickup, Double Button Pick | – |
| Cabin Position Information | Magnetic Switch | – |
| Automatic Door Control Single Door, Double Door | Single Door, Double Door | – |
| Motor Control | Synchronic (gearless) Machine, Asynchronous (geared) Machine | – |
| Group Work Feature | 4 | Elevators |
| Compliance to Standards | EN81/1-2/ 20+A3 | – |
| Drive Type | Double Speed, Hydraulic, VVVF | – |
| Display Output | 7 Segments, Gray/Binary Code Output LCD Output | – |
| Programmable Input/Output | 20 Inputs/8 Outputs (4PR + 4PT) | – |
Door Bridging
With internal door bridging relays; early door opening and door open level renovation.
Internal Relays
Internal relays for switching between mains and emergency supply (two contactors must be used)
Safety Circuit
48 -230VAC safety circuit voltage
Hand Terminal Support
ARCODE handheld terminal compatible with AREM user friendly multi-language color TFT screen CANopen any point on the system can be controlled.
Short Stay Travel
Digital well training / Short-stay travel without additional setup and equipment (additional adjustment required).
Ease of Use
All parameter settings can be made via card via LCD screen.
Rapidity
Door opening and quick start.
- LCD display,
- Explanatory menu without abbreviation and code
- Access to any menu via the hand-held terminal via CANbus
- Record errors together with the date, time and stop number
- Can control system from any point on CANbus
- Easy error detection
- Rapid and reliable update of all units at once with AREM
- Ability to work with all ARCODE systems
- SD Card makes it easy to load system parameters, back up, or transfer for easy and fast setup
General Features
| Feature | Details | Unit |
|---|---|---|
| Rated Speed | 2.5 | m/s |
| Number of Stops | 64 | Stops |
| Control Type | Single Button Pickup, Double Button Pick | - |
| Cabin Position Information | Magnetic Switch | - |
| Automatic Door Control Single Door, Double Door | Single Door, Double Door | - |
| Motor Control | Synchronic (gearless) Machine, Asynchronous (geared) Machine | - |
| Group Work Feature | 4 | Elevators |
| Compliance to Standards | EN81/1-2/ 20+A3 | - |
| Drive Type | Double Speed, Hydraulic, VVVF | - |
| Display Output | 7 Segments, Gray/Binary Code Output LCD Output | - |
| Programmable Input/Output | 20 Inputs/8 Outputs (4PR + 4PT) | - |
Technical Features
Door Bridging
With internal door bridging relays; early door opening and door open level renovation.
Internal Relays
Internal relays for switching between mains and emergency supply (two contactors must be used)
Safety Circuit
48 -230VAC safety circuit voltage
Hand Terminal Support
ARCODE handheld terminal compatible with AREM user friendly multi-language color TFT screen CANopen any point on the system can be controlled.
Short Stay Travel
Digital well training / Short-stay travel without additional setup and equipment (additional adjustment required).
Ease of Use
All parameter settings can be made via card via LCD screen.
Rapidity
Door opening and quick start.
Functions
- LCD display,
- Explanatory menu without abbreviation and code
- Access to any menu via the hand-held terminal via CANbus
- Record errors together with the date, time and stop number
- Can control system from any point on CANbus
- Easy error detection
- Rapid and reliable update of all units at once with AREM
- Ability to work with all ARCODE systems
- SD Card makes it easy to load system parameters, back up, or transfer for easy and fast setup
